Pitch: 0.35mm
Pin Per DUT: 1600
Aspect Ratio: 50:1

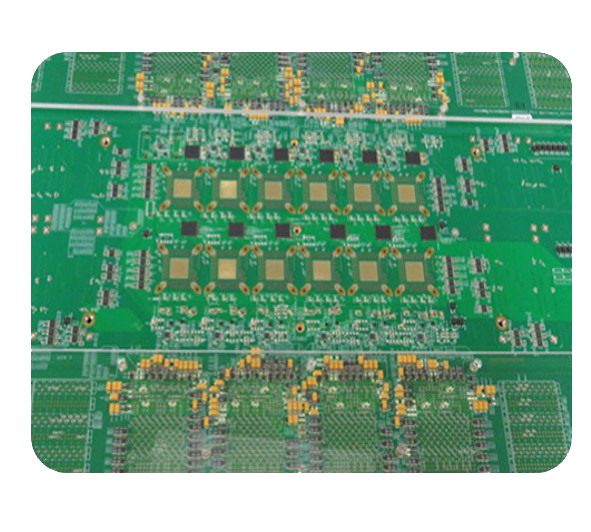

No. of DUTs: 12
Layer Count: 66
Max Data Rate: 16Gbps
Multiple 224Gbps PAM4 (FF: 56 GHz)
64Gbps PCIE GEN6 (FF:32 GHz)
8533 Mbps LPDDR5x on board
Ultra High Current(1000A )
90μm C4 Side Pitch
0.5mm BGA Side Pitch
40μm Laser Via

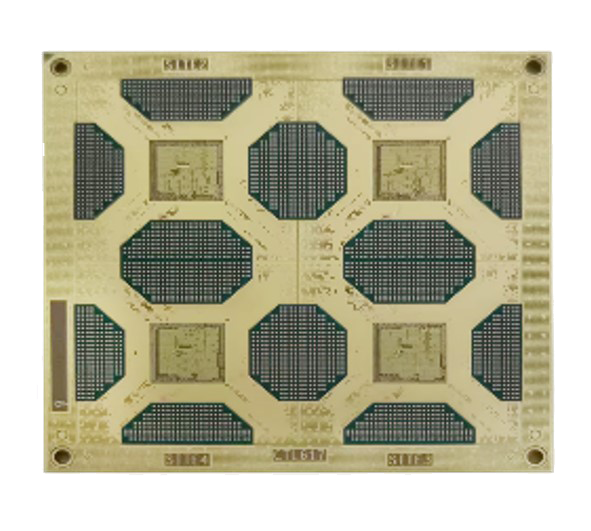

7 Build-up Layers Per Side
25 Total Layers
1.5mm Thickness
59.8mm X 57.5mm MLO Size

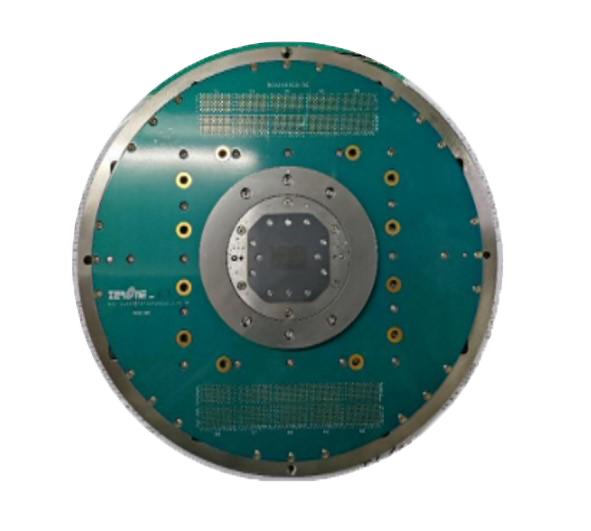

Pin Count: 16,013
Pad Pitch:127μm
CCC Per Pin: 625mA
Probe Depth:15mm Include PCB Thickness
Tip Length: 0.65mm
Tip Shape: Flat
Pin Count: 12,200
Pad Pitch: 90μm
CCC Per Pin: 800mA
Probe Depth:13mm
Tip Length: 0.53mm
Tip Shape: Flat
DUT Count: 4
MLO Size: 59.8mm*57.5mm

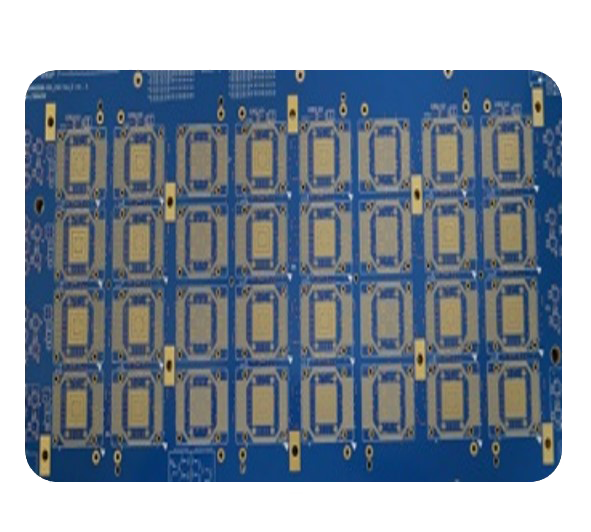

32 DUTS with 0.80mm Pitch
296 Pins Per DUT
47:1 Aspect Ratio
100 Layers
8Gbps Max Data Rate
